Temperature Controller of Dry LD-B10-10F

Temperature Controller of Dry LD-B10-10F

LD-B10-10 series temperature controller of dry transformer (referred to as temperature controller) is an intelligent controller designed especially for safe operation of dry transformer. The temperature controller features adoption of single chip computer technology and utilization of the platinum thermo-resistors embedded in the winding of the dry transformer for detection and display of temperature rise of the transformer windings. It can start or stop the cooling fan automatically for forced air cooling of windings and control over-temperature alarm and over-temperature tripping output so that the transformer will be operated safely.

Introduction

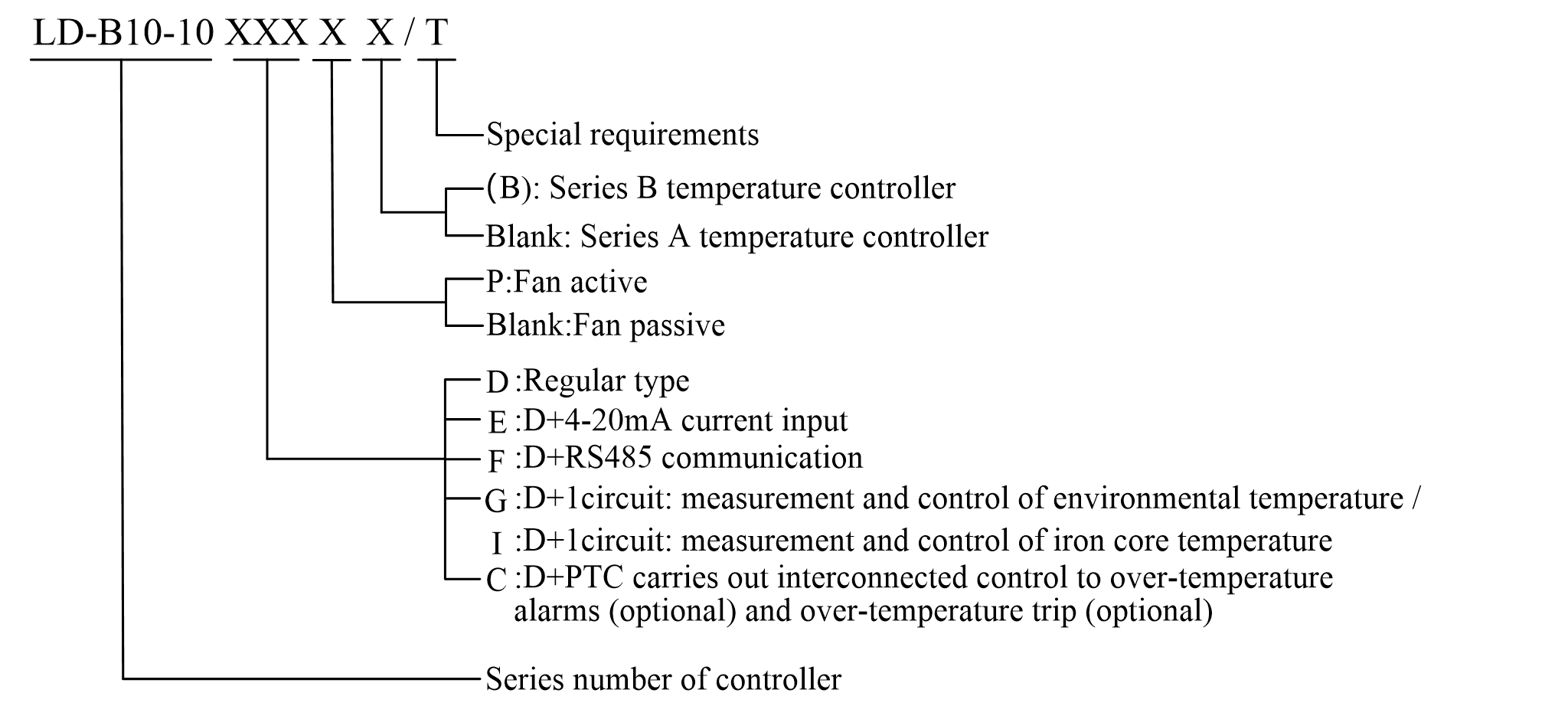

Type selection (arbitrary combination of E, F, G/I and C)


Please notice the difference between the series A and series B controller when type selecting.

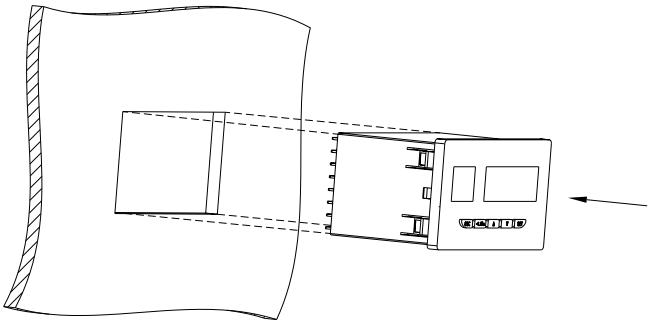

01 Installation instructions (inserted installation)


An inserted hole is opened on the Transformer cabinet according to the size of the inserted installation hole of the controller.
Insert LD-B10-10 Temperature controller into the inserted hole of transformer cabinet.

02 Wiring diagram example and instructions

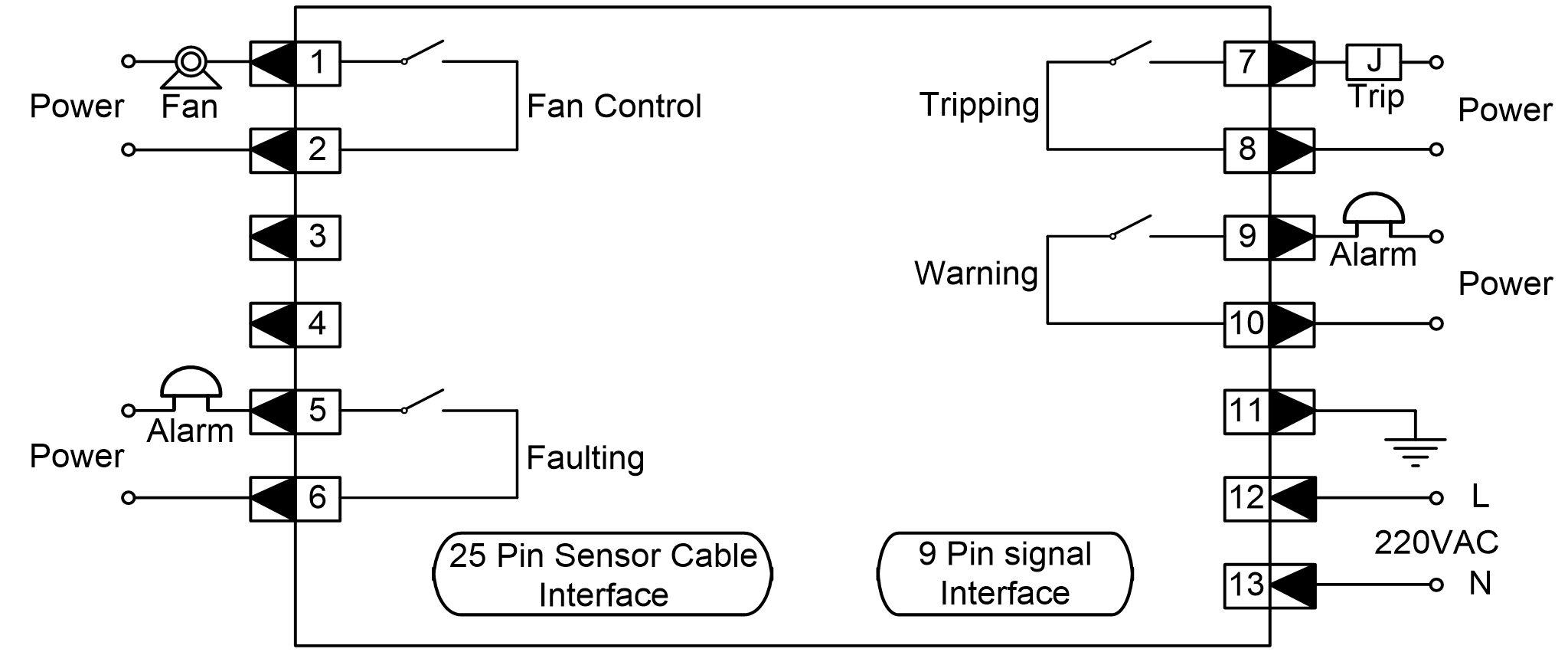

LD-B10-10D/E/F wiring diagram (Note: 9-pin interface is not available for LD-B10-10D)

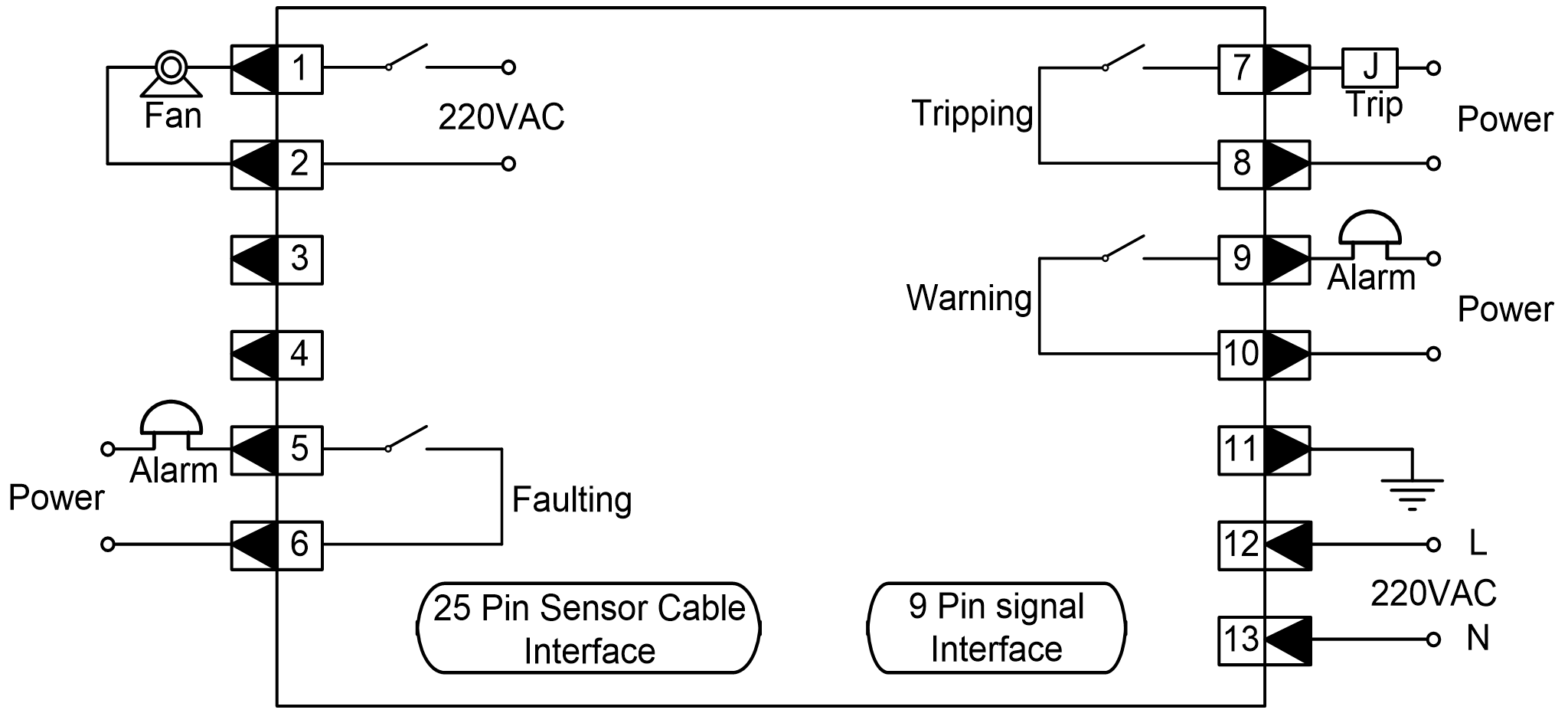

LD-B10-10DP/EP/FP wiring diagram (Note: 9-pin interface is not available for LD-B10-10DP)

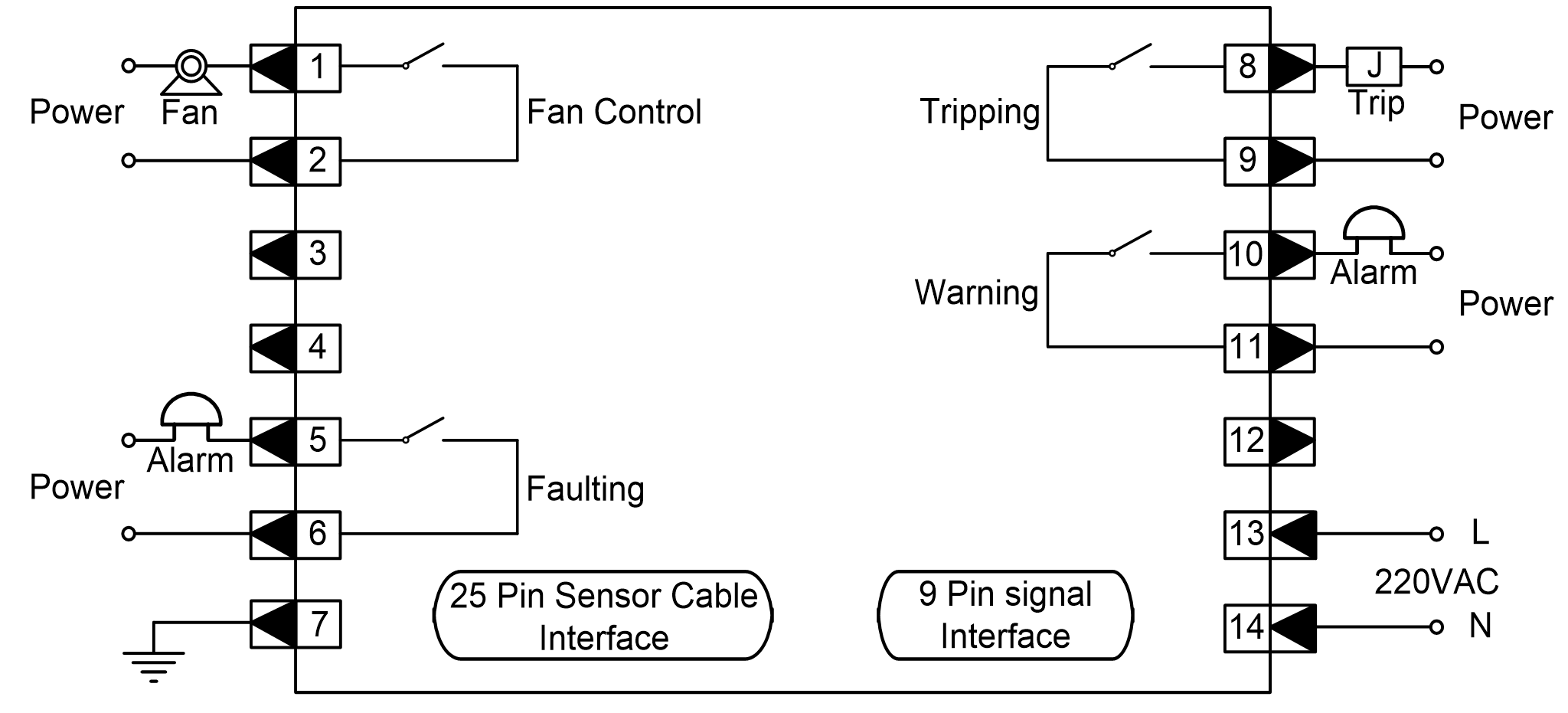

LD-B10-10D(B)/E(B)/F(B) wiring diagram (Note: 9-pin interface is not available for LD-B10-10D(B)

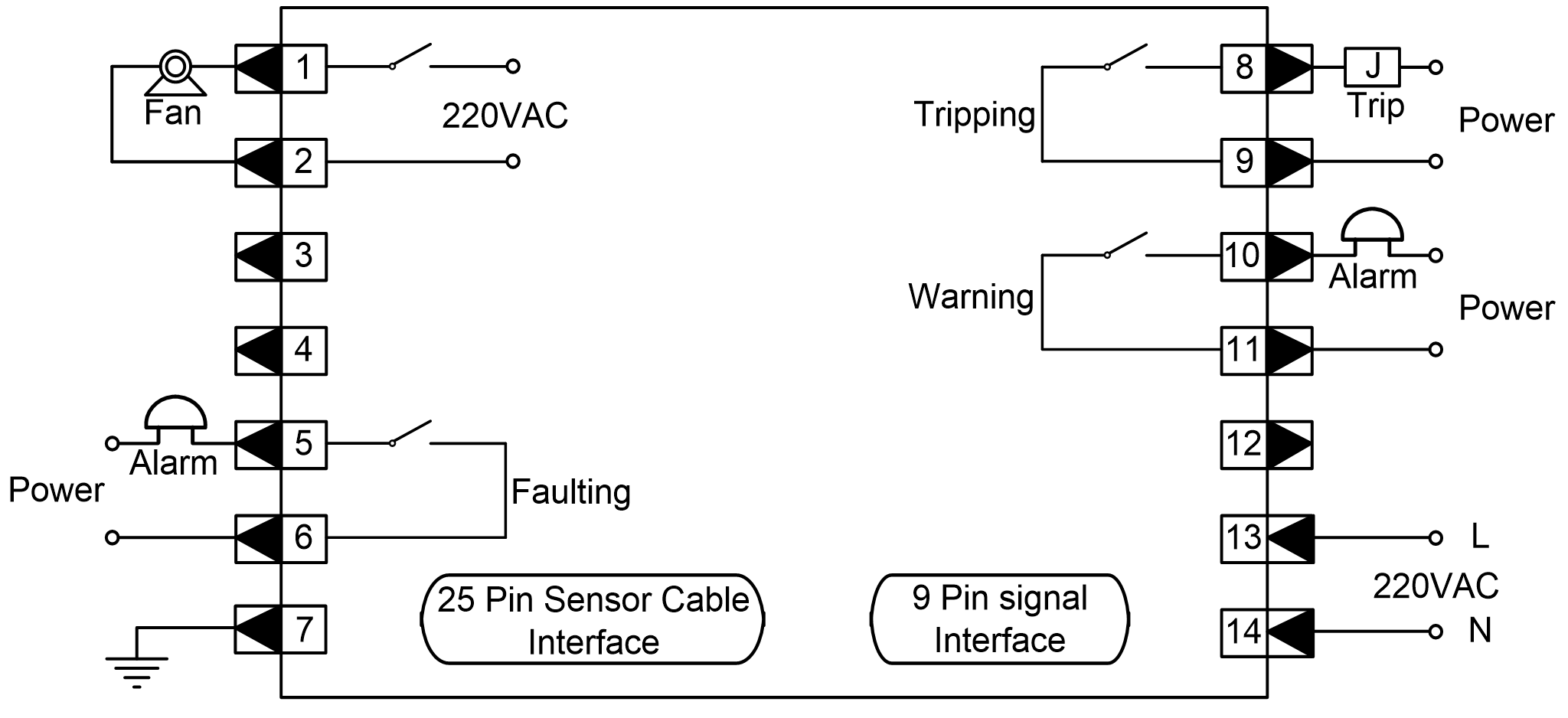

LD-B10-10DP(B)/EP(B)/FP(B) wiring diagram (Note: 9-pin interface is not available for LD-B10-10DP(B))


Note 1: D25 sensor cable is connected to Pt100 and PTC (type C) signal input; D9 signal cable is connected to RS485 signal (type F) and 4~20mA current signal (type E) output.

Note 2: the actual definition of the terminal block is subject to the wiring diagram of the product!

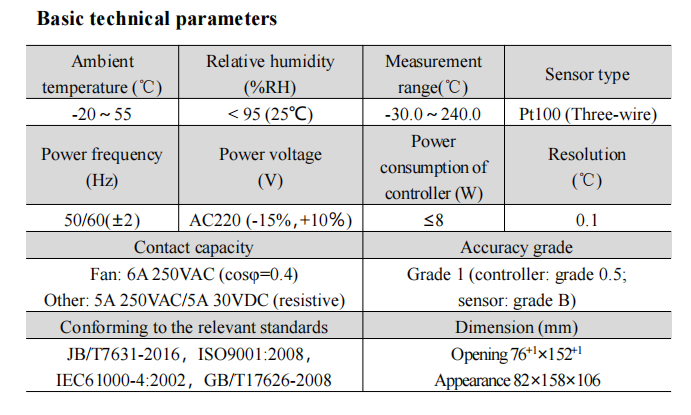

Product data sheet.
