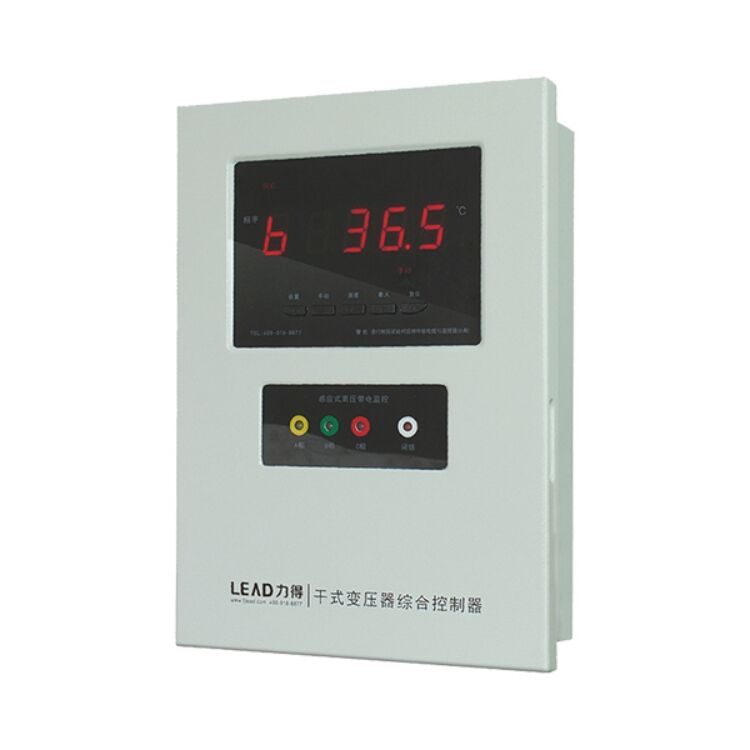

BWDK-3206H series dry type transformer integrated controller is newly designed based on the combination of customer requirements, structural design and performance reliability. It not only has dry-type transformer temperature monitoring function, but also integrates inductive high-voltage live display device, terminal box and other extended functions. It is an integrated innovative product that fully embodies the "customer-centric".

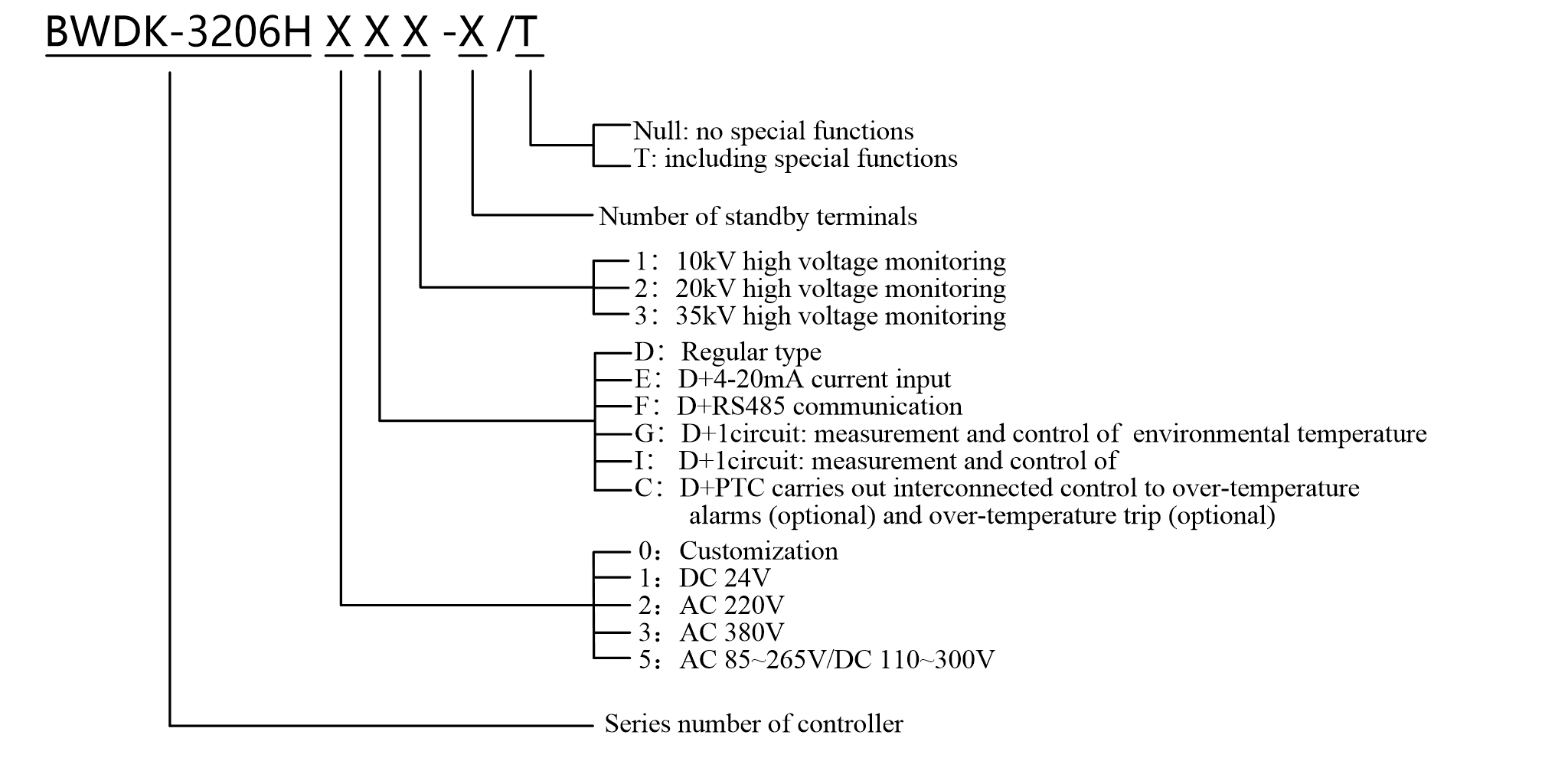

Type selection (arbitrary combination of E, F, G/I and C)
Note: BWDK-3206 series are not applicable to the same utilization of G-type and I-type.

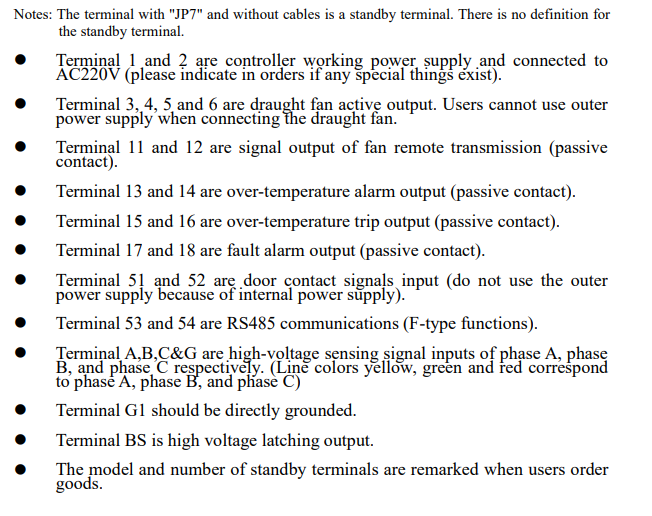

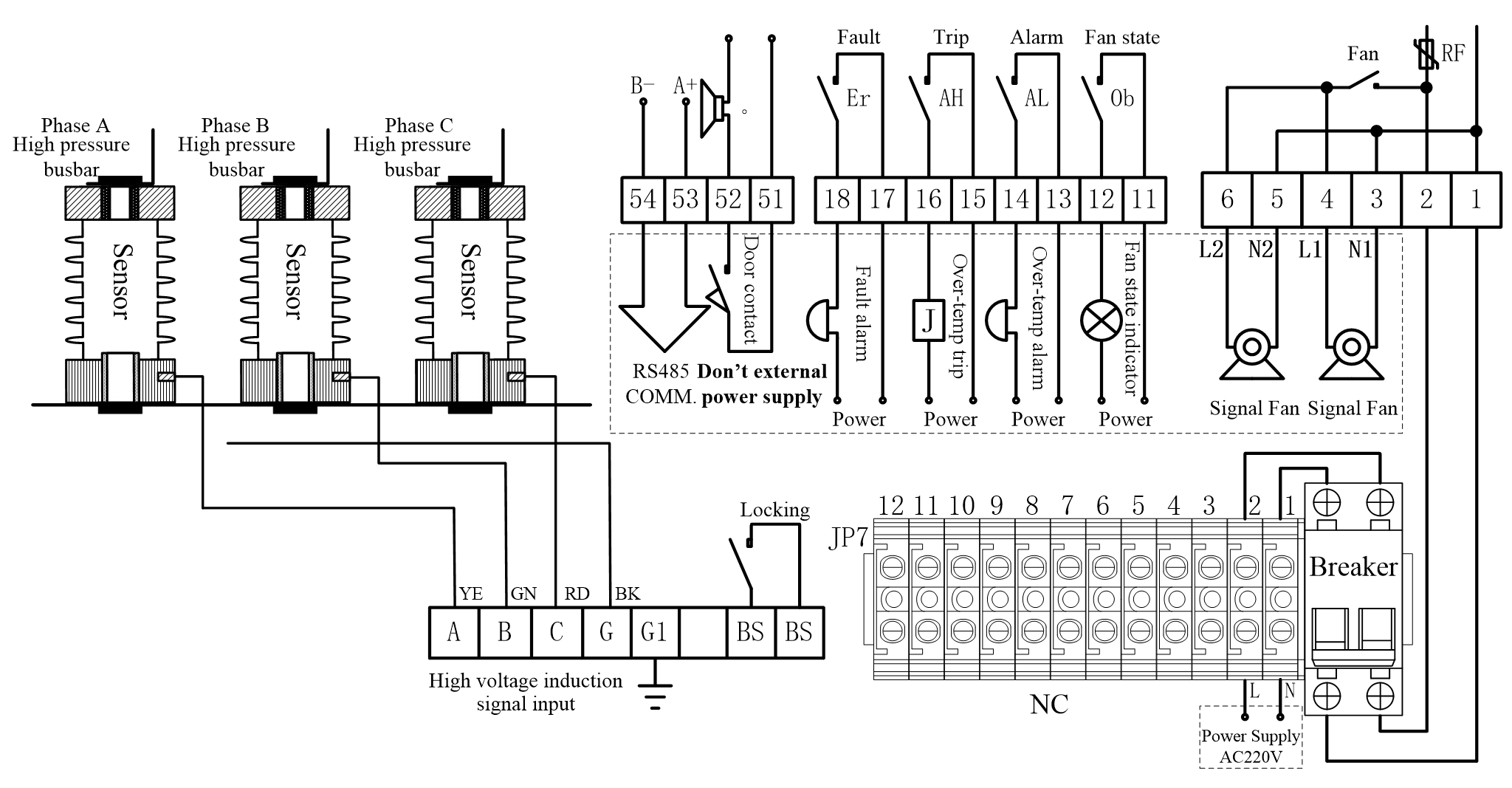

Wiring Diagram Example and Instructions

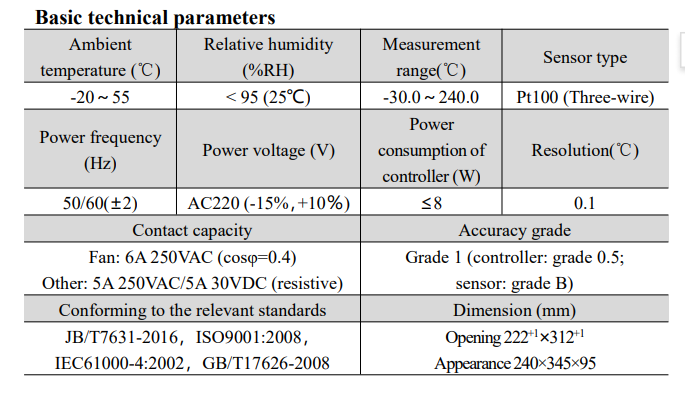

Product data sheet
