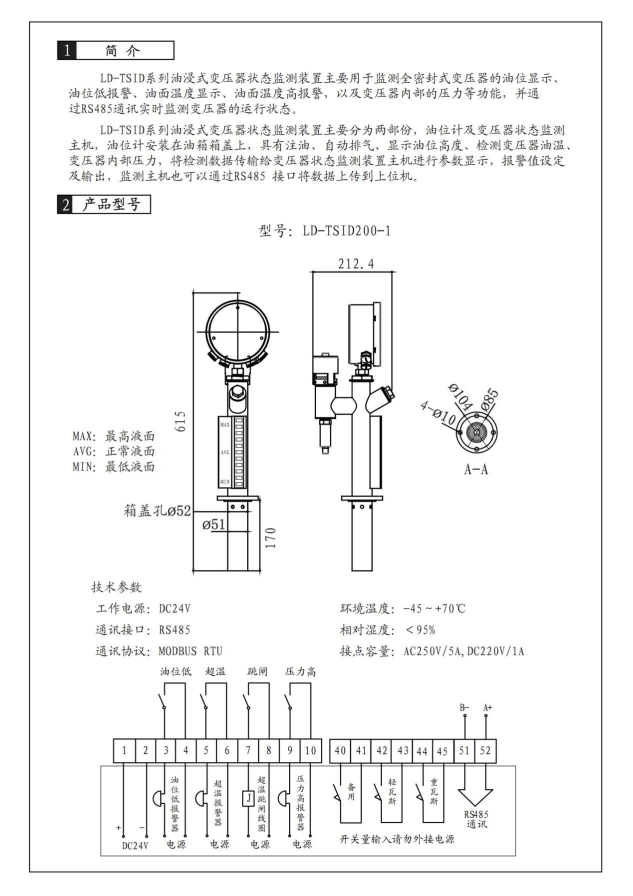

Oil-immersed transformer condition monitoring manual LD-TSID200

LD-TSID series oil-immersed transformer condition monitoring device is mainly used to monitor the oil level display of fully sealed transformers,

Low oil level alarm, oil level temperature display, high oil level temperature alarm, as well as the pressure inside the transformer and other functions, and through Real-time monitoring of transformer operation status through RS485 communication.

LD-TSID series oil-immersed transformer condition monitoring device is mainly divided into two parts, oil level meter and transformer condition monitoring Main engine, oil level meter installed on the tank cover, with oil injection, automatic exhaust, display of oil level height, detection of transformer oil temperature,

Transformer internal pressure, the detection data is transmitted to the transformer status monitoring device host for parameter display, alarm value setting And output, the monitoring host can also upload data to the host computer through the RS485 interface.
